XPG - Gateway/RTU and HMI

XPG is a scalable solution designed for the control and command of power grid infrastructure. XPG handles data acquisition, processing and transfer (Gateway/RTU) as well as local supervision (HMI). From small to large volumes of data, XPG enables total interoperability with equipment from different suppliers.

XPG is available in a form adapted to the use case, either in various hardware formats or as a virtual machine.

Complete product sheet

The applications covered by XPG

Gateway - RTU

HMI - Supervision - SCADA - DCS

Power Quality and Disturbance data collector

SCADA/NCC communication front-end

Efficient and secure management of power grids and smart grids requires robust multiprotocol communications and appropriate control solutions. Let's discuss your specific needs!

Map of where XPG Gateways can be used, such as on solar plant, on industrial buildings, offshore, at a dam facilities, etc

CONDIS' grid control solution is ideal for your transition to digital or virtual substation technology.

Here are some of its main benefits:

Advanced application and system management
Robust and easy update mechanism
Comprehensive backup for reliable appliance recovery

Use cases

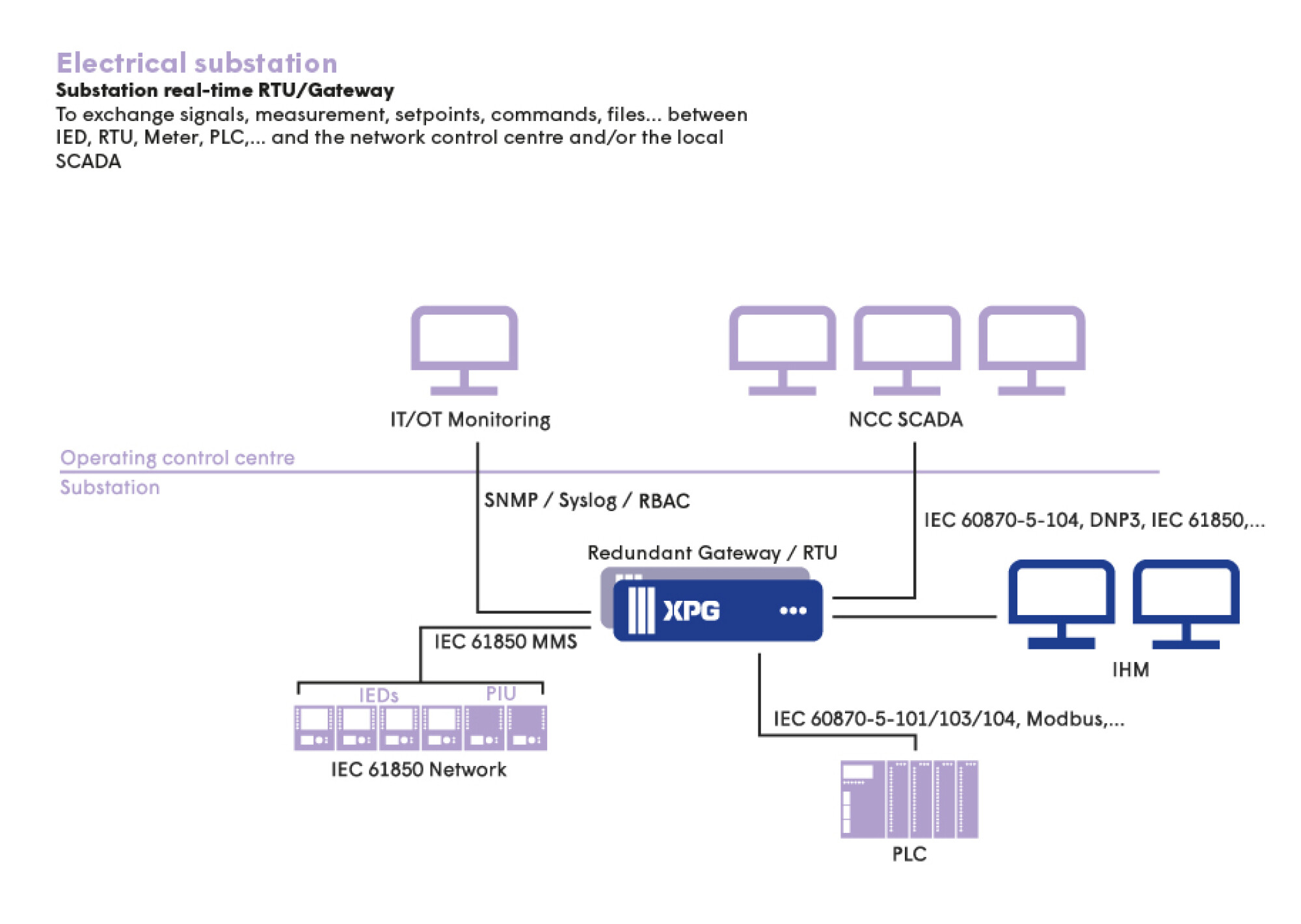

Electrical Substation

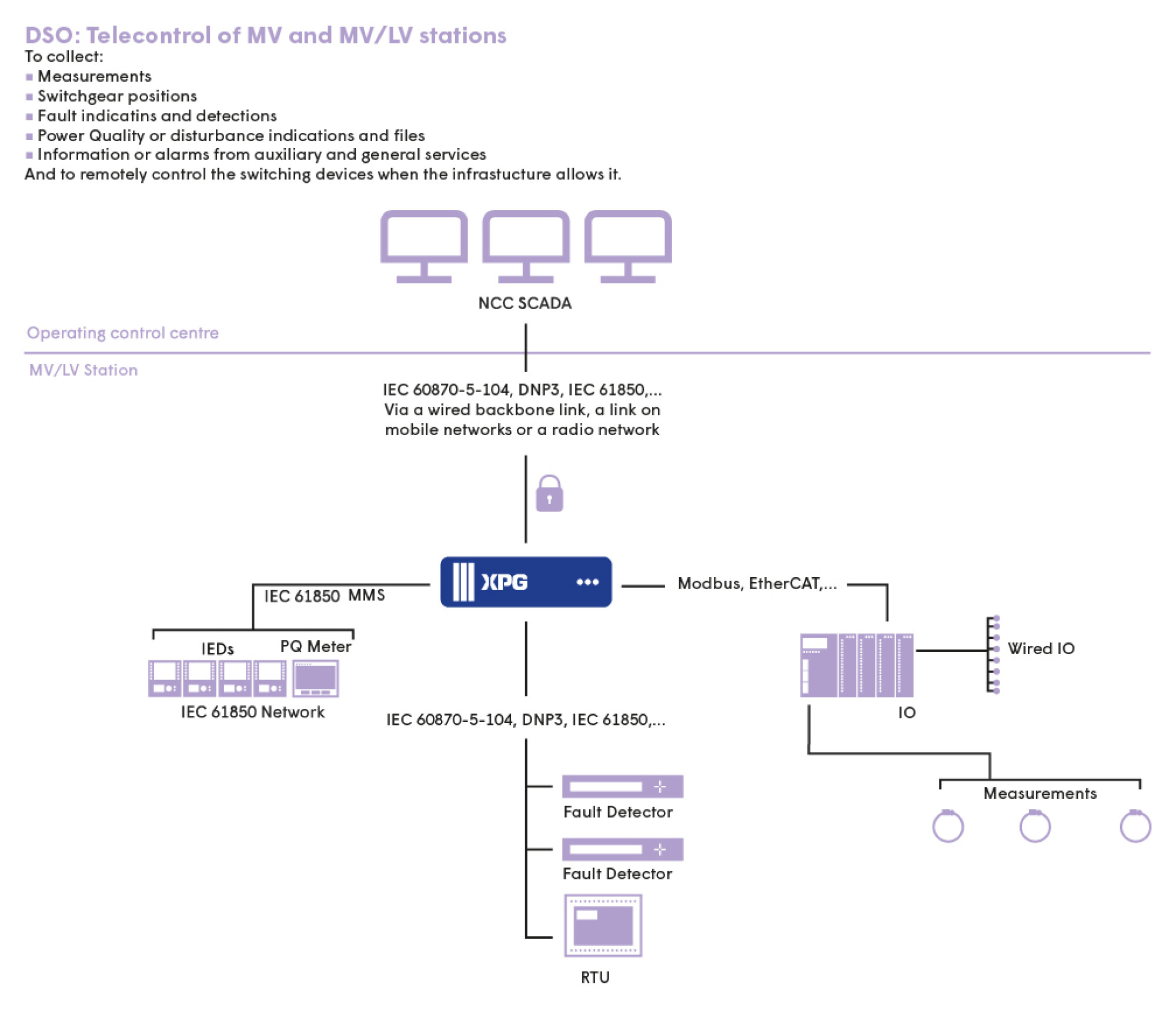

DSO: Telecontrol of MV and MV/LV stations

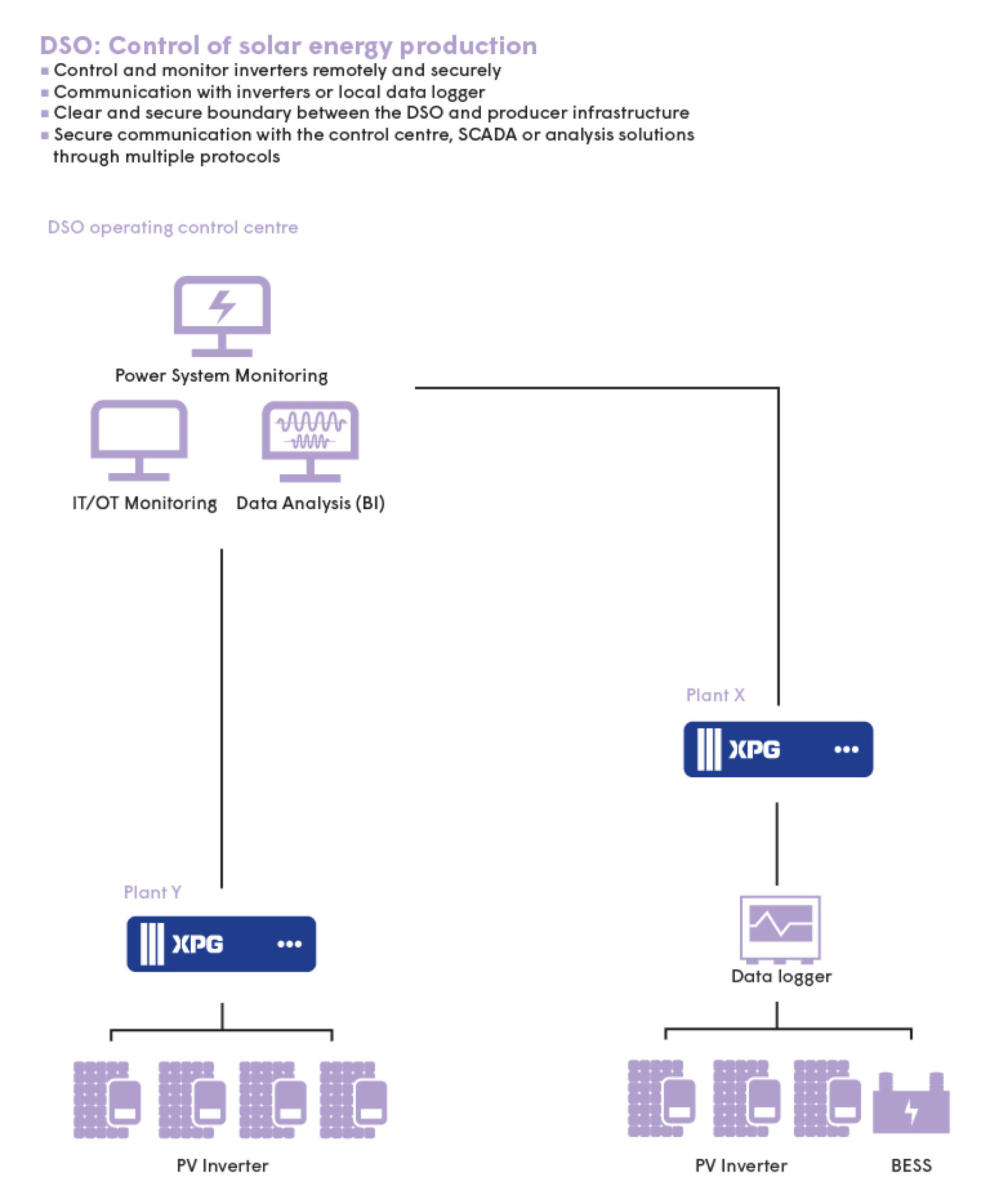

DSO: Control of solar energy production

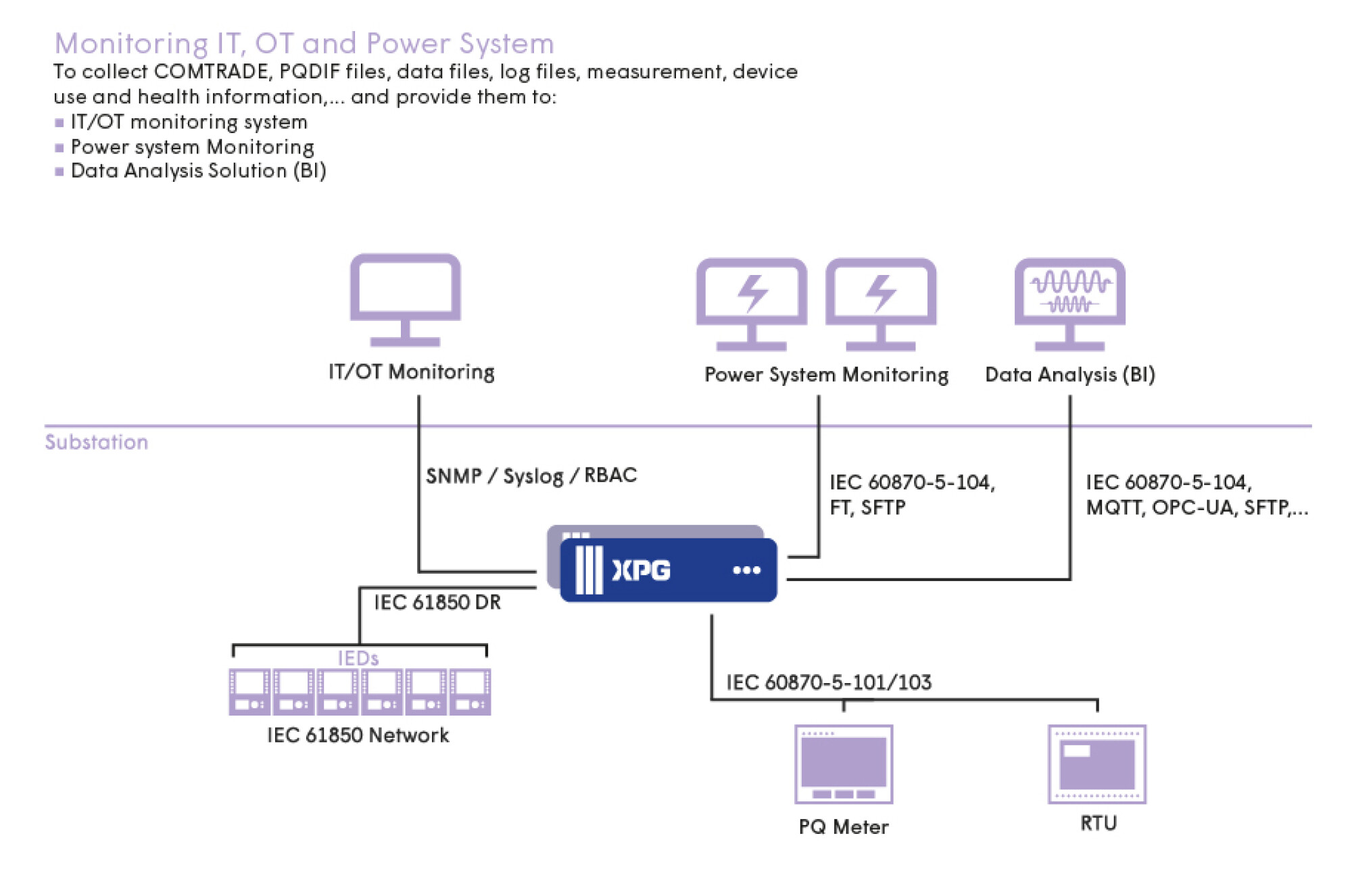

Monitoring IT, OT and Power system

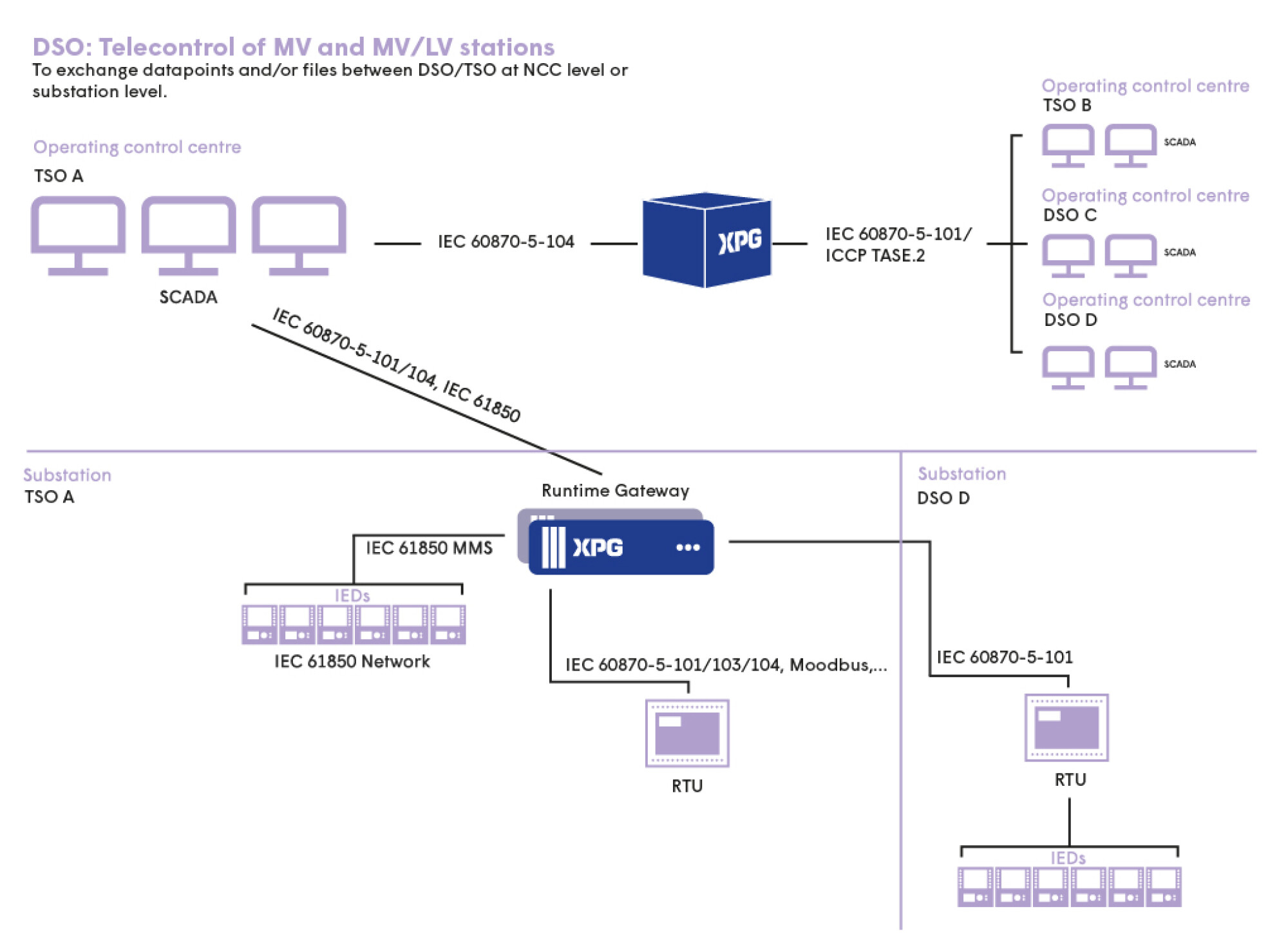

Inter DSO/TSO Link

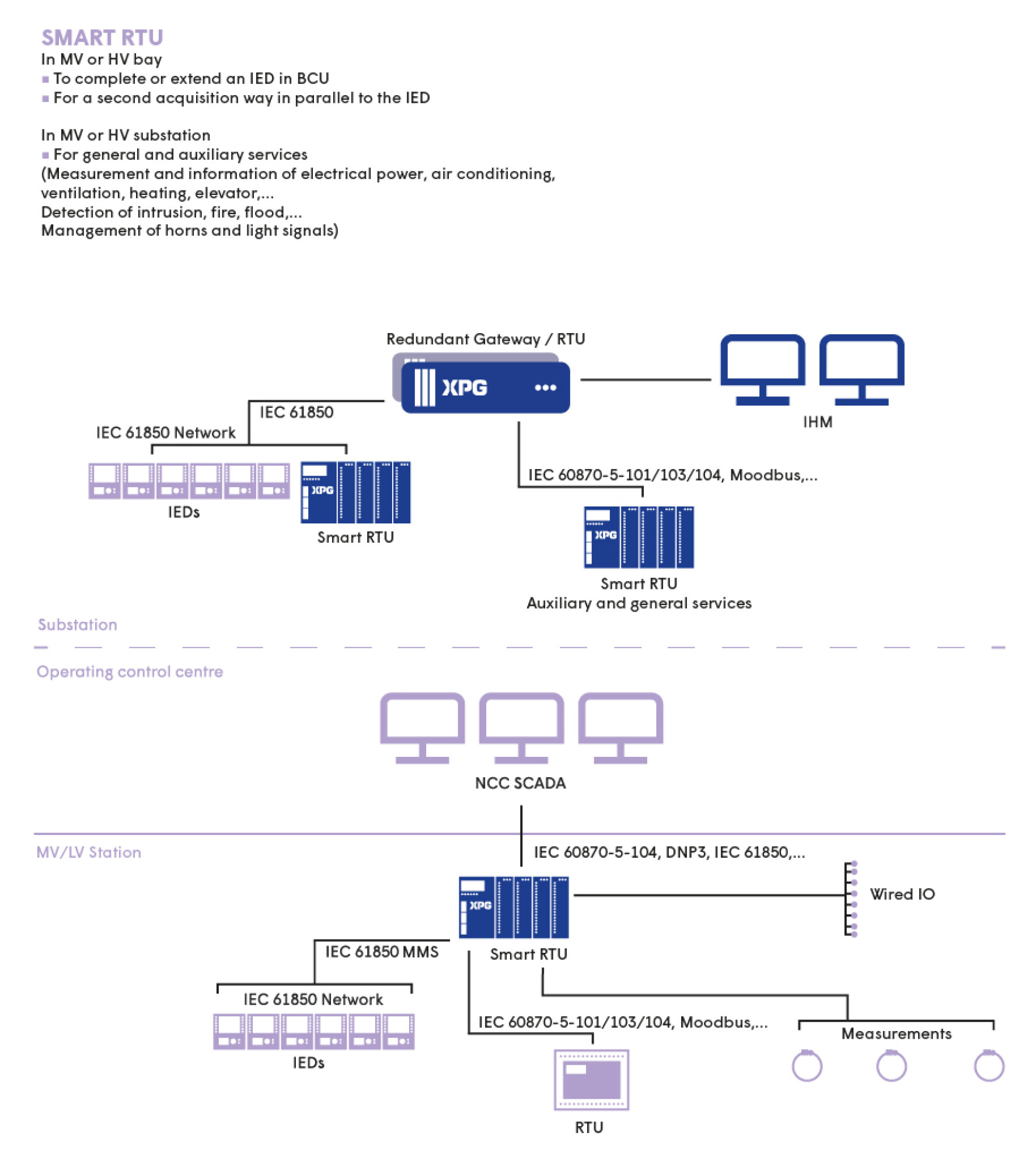

Smart RTU

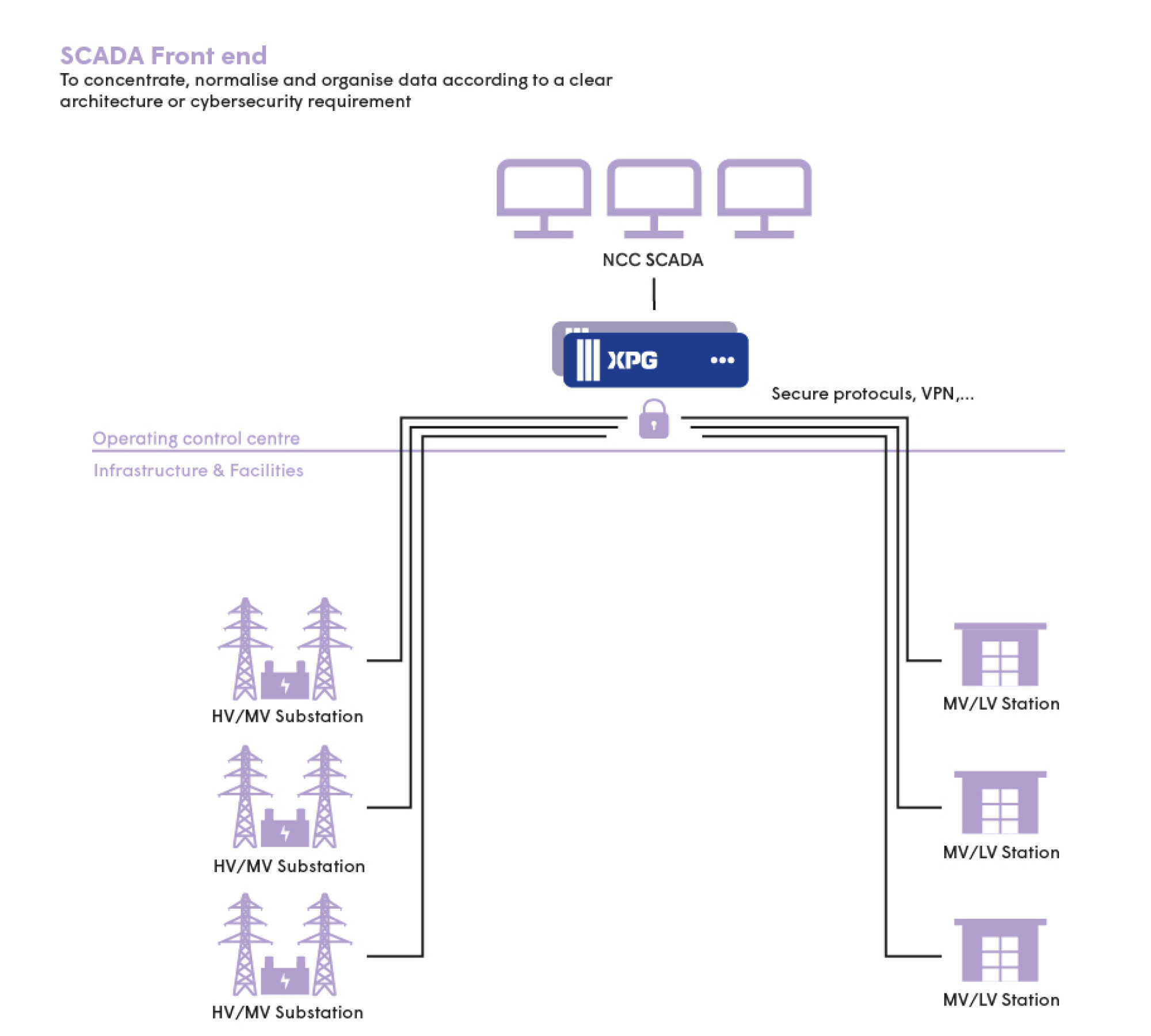

SCADA Front end

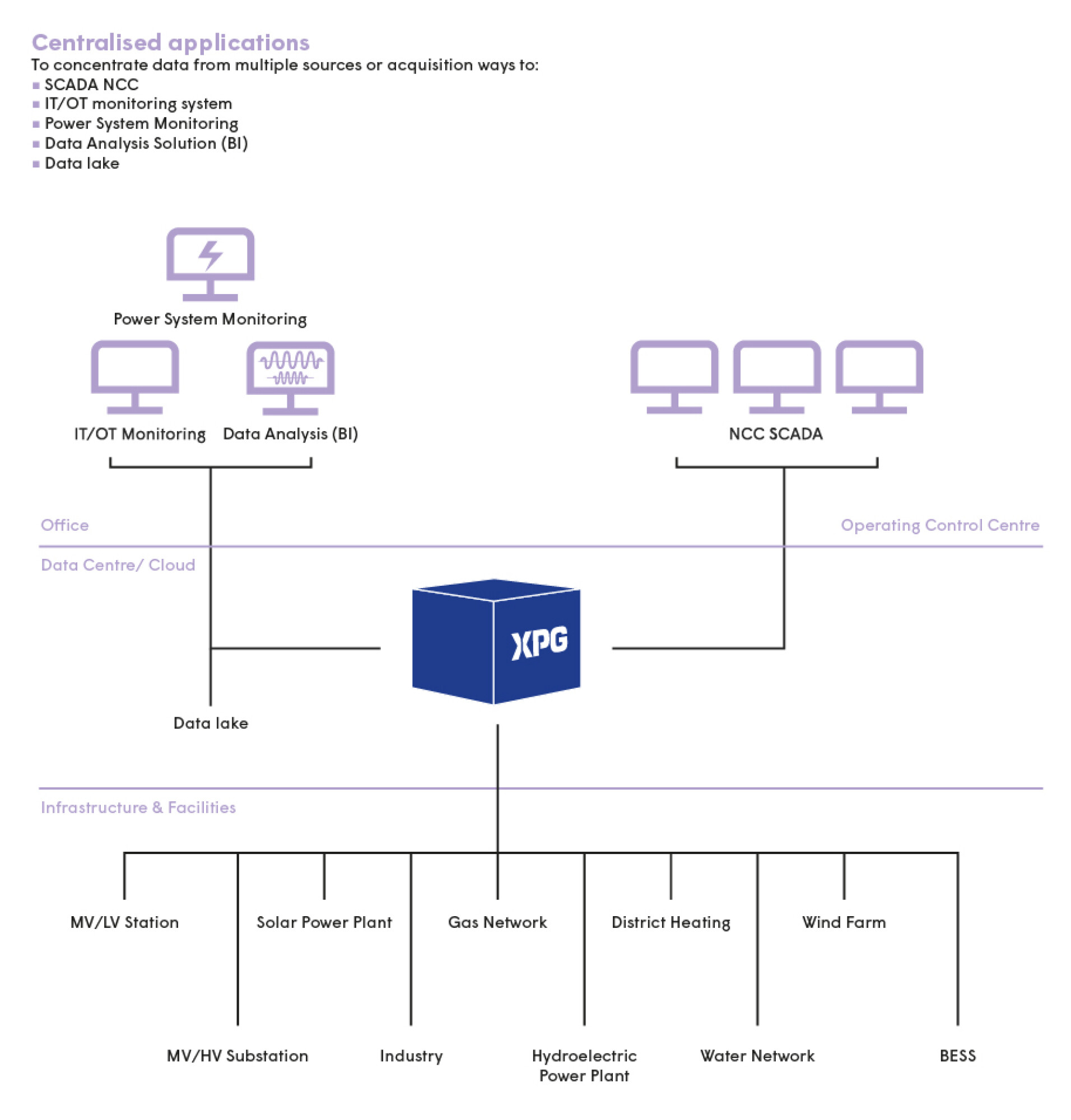

Centralised applications

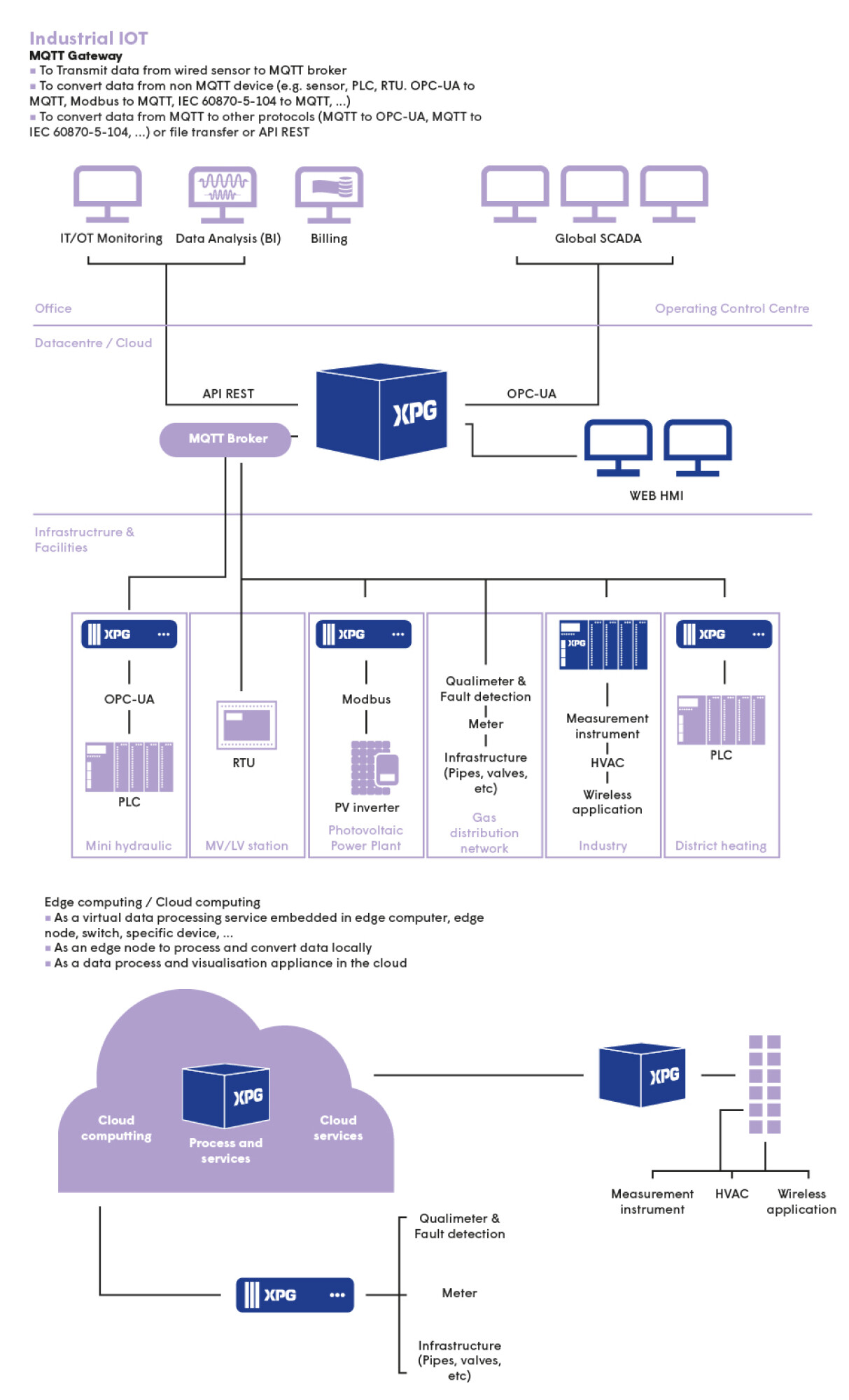

Industrial IoT

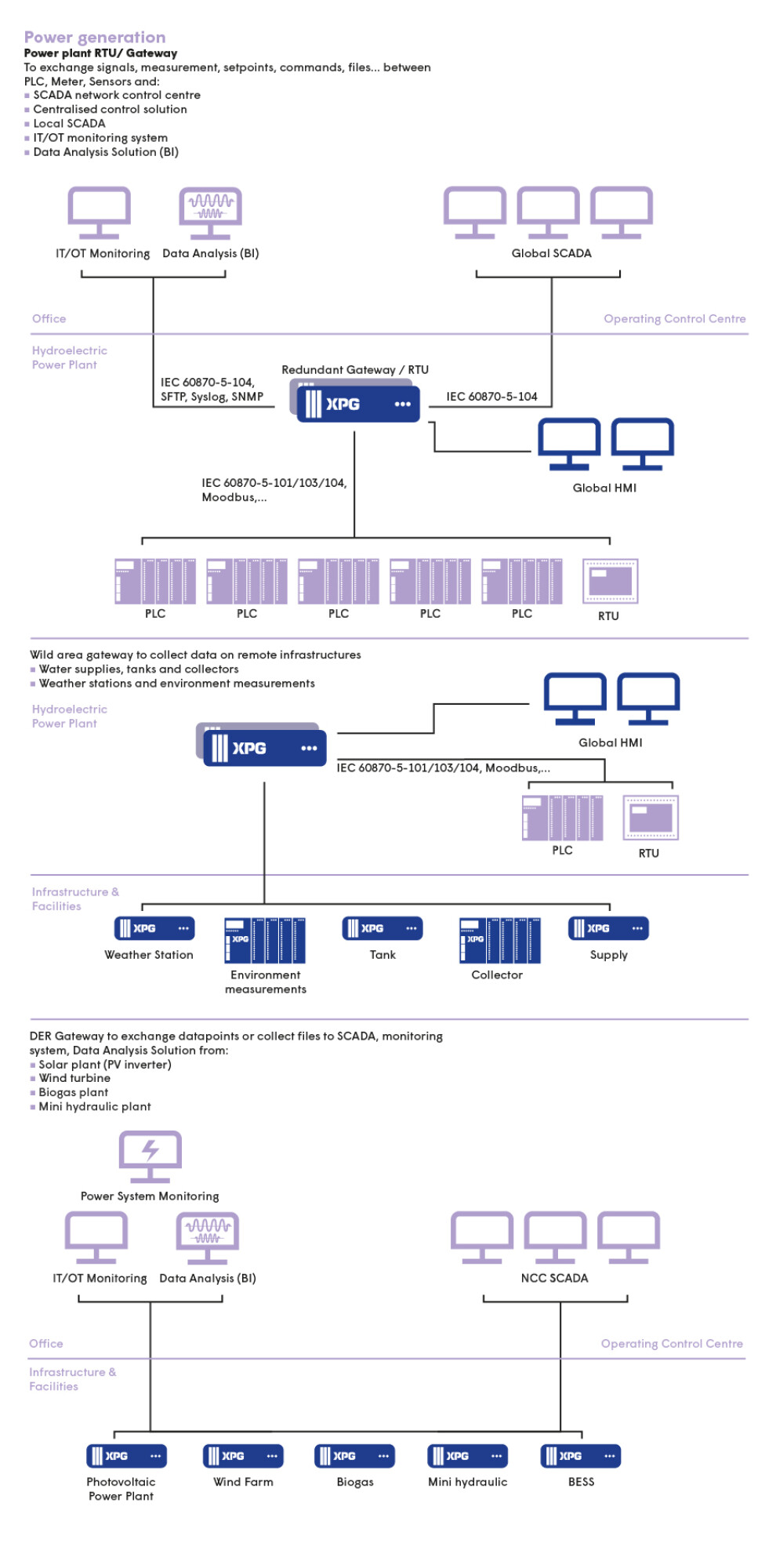

Power generation

Available hardware typologies

XPG-DA681C

1U rack mount power substation computer. IEC 61850-3 certified

XPG-ICS-P371

DIN Rail mount. Power substation computer. IEC 61850-3 certified

XPG-IG2

Compact and robust embedded computer. 2 LAN, DIN Rail mount. Optional modem for mobile communications

XPG-DA820C

3U rack mount power substation computer. IEC 61850-3 certified.

XPG Virtual Machine

Proven interoperability since 2018. Optimise your power grid infrastructure with the virtual version of XPG.

The digital transformation of power grid infrastructures demands flexible, scalable, and secure solutions. The virtual machine version of XPG offers all functionalities of the physical one, with the added benefits of software deployment: speed, agility, cost reduction, and simplified integration into IT environments.

Related news

31/01/25

Control of Solar Production
for a DSO

03/03/23

Interview about IEC 61850 with Jörg Reuter

20/01/23

Interview about IEC 61850 with Raphaël Gotti

Protocols/standard & Technologies/IT Integration

Protocols/standard

IEC 61850 MMS Client, IEC 61850 MMS Server, IEC 61850 File Transfer, IEC 61850 DR (Disturbance Recording)

IEC 60870-5-104 Client, IEC 60870-5-104 Server, IEC 60870-5-104 File Transfer, IEC 60870-5-104/IEC 62351-3/IEC 62351-3 Security (Master/Slave)

IEC 60870-5-101 Master, IEC 60870-5-101 Slave, IEC 60870-5-101 File Transfer

IEC 60870-5-103 Master

DNP3 TCP Client

ICCP TASE.2 (IEC 60870-6) Client, ICCP TASE.2 (IEC 60870-6) Server

OPC UA Client, OPC UA Server

Modbus TCP Client, Modbus TCP Server, Modbus RTU Master (serial), Modbus RTU Slave (serial)

MQTT Publisher/Subscriber

REST API Client, REST API Server

EtherCAT Client

Siemens S7 ISO TCP Client

SAIA S-Bus Serial Master, SAIA S-Bus TCP Client

WAGO K-Bus Client

Telegyr 065 Master, Telegyr 8xx Master, Telegyr 8xx Slave

Tetraèdre TRMC Client SOAP

Technologies/IT Integration

4G/5G

HTTP(S) Server

SSH Server

LDAP-S Client

Radius

SFTP Client/Server

SNMP Agent (v2c,v3)

SNMP Client (v2c, v3)

Syslog Client

VPN (OpenVPN, IPSec)

NTP Client/Server

LoRaWAN® interface to NS
